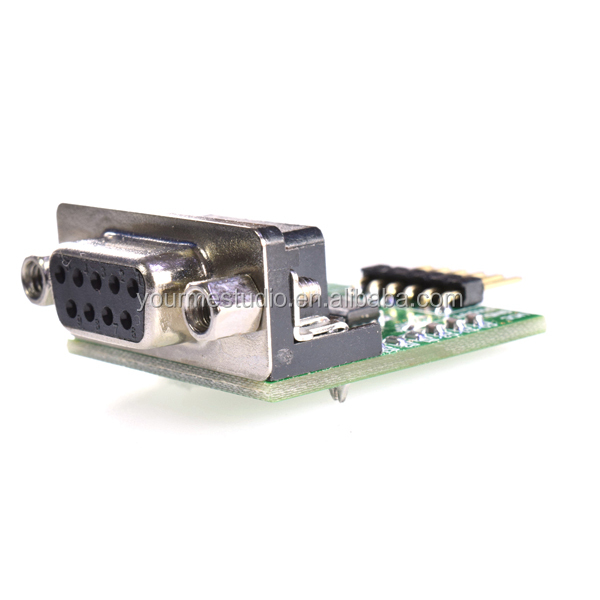

TTL brush machine module RS232 to TTL Serial port module

FOB Reference Price:Get Latest Price
10 Piece/Pieces Welcome to order samples (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
DIY
Model Number:
YRD-03629
Product Name:
TTL brush machine module RS232 to TTL Serial port module
Supply Ability
Supply Ability:
100000 Piece/Pieces per Week TTL brush machine module
Packaging & Delivery
Packaging Details
we can give you strong package via DHL,UPS,Fedex,TNT,EMS etc. Standard export package!!
Port
shen zhen
Lead Time :
1-2 days for sample order,2-5days for bulk order



RTTL brush machine module RS232 to TTL Serial port module







1.High quality     2.100% Brand new



                  3.Fast delivery     4.Competetive price









Product parameters:



1: Microcontroller, ARM and other MCU through the computer's serial port (COM port) and computer communications

2: radio modification, mobile phone brush machine, XBOX360 brush machine, GPS, car testing, DVD brush machine, hard disk repair, set-top box upgrade

3: equipment such as serial port expansion

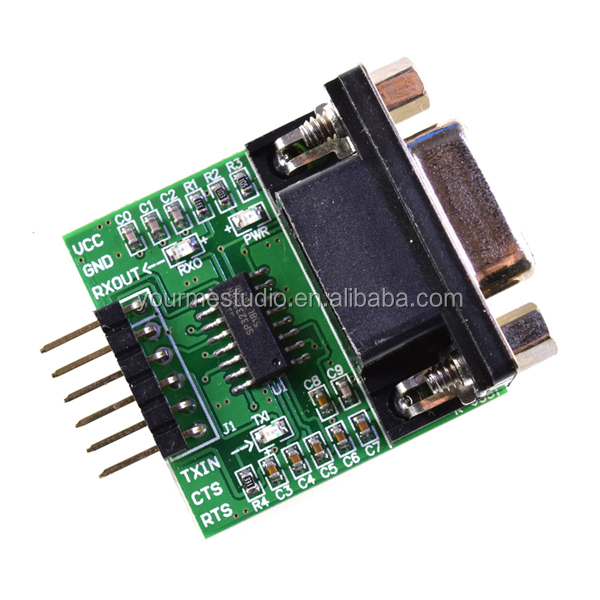

Instructions for use: (to access the MCU, for example, how to connect the rows of pins)

VCC: then 3V-5.5V

GND: Connect to GND

RxOUT: connect MCU.RX (signal flow: MCU.RX << SP3232 << PC.TX)

TxIN: Connect MCU.TX (Signal Flow: MCU.TX >> SP3232 >> PC.RX)

CTS: connected MCU.CTS (signal flow: MCU.CTS << SP3232 << PC.RTS)

RTS: Connect MCU.RTS (Signal Flow: MCU.RTS >> SP3232 >> PC.CTS)



Shipping list:


1: RS232 to TTL module X 1

2: 6P 30CM mother to mother DuPont line X 1





module.jpgmodule (1).jpg
